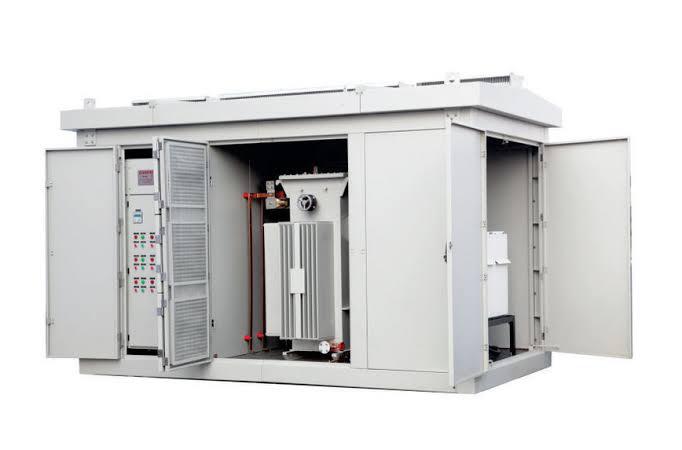

Our metallic sheet compact substations integrate medium voltage (MV) and low voltage (LV) components into a single, space-saving unit, providing ideal solutions for areas with limited installation space. Designed for systems up to 36kV, these units ensure high safety, quick commissioning, and durability under outdoor conditions.
Each substation consists of three main sections: MV switchgear compartment, distribution transformer compartment, and LV panel compartment. All components are manufactured in compliance with IEC 62271-202, IEC 60076, and IEC 61439-1/2 standards. The modular construction enables easy maintenance while ensuring high protection against environmental factors.
Key Technical Features:
MV Rated Voltage: 12 – 24 – 36kV
LV Rated Voltage: 400 – 690V
Transformer Rating: 100kVA – 2500kVA
Protection Class: IP54 – IP65 (depending on compartments)
Fire-resistant and galvanized sheet steel construction
Natural or forced ventilation options
Compliance with IEC 62271-202, IEC 61439-1/2, IEC 60076
Compact design for fast installation and commissioning
SCADA and remote monitoring integration (optional)
These substations are widely used in housing developments, shopping centers, industrial facilities, mobile sites, ports, and infrastructure projects.

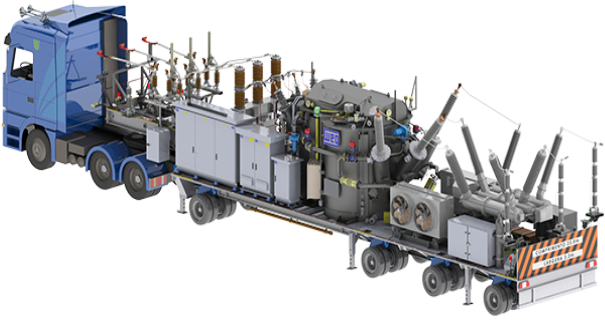

Mobile substations are portable high-voltage power distribution systems designed to provide fast and reliable solutions for emergency energy demands, grid outages, maintenance operations, or temporary network setups.
Mounted on trailer or container-based platforms, these systems integrate high-voltage power transformers, switching and protection equipment (AIS/GIS), medium voltage panels, auxiliary systems, and automation infrastructure into a single transportable unit.
At IMPERIUM GLOBAL SOLUTIONS, we offer mobile substations configured up to 245 kV, designed according to project-specific requirements. Their rapid deployment capability makes them ideal for both public and private sector applications where uninterrupted power is essential.
Applications:
Emergency power supply (disasters, crisis areas, fault recovery)
Temporary construction or field operations
Planned maintenance and scheduled outages
Grid reinforcement and temporary load transfer
Temporary connection of renewable energy plants
Technical Features:
Configurations from 36 kV to 245 kV
Power range from 10 MVA to 100 MVA
AIS or GIS integration
SCADA/RTU compatible for remote monitoring and control
Compliance with IEC 62271 and IEC 60076 standards
Rapid setup, full mobility, and flexible field adaptation
