The most commonly reported failures in Sepam relays are related to malfunctions of the Advanced UMI module.
It is important to note that if there is any issue with the keypad, LCD screen, or LED indicators, the operator will be unable to monitor the relay’s status or make any functional changes.

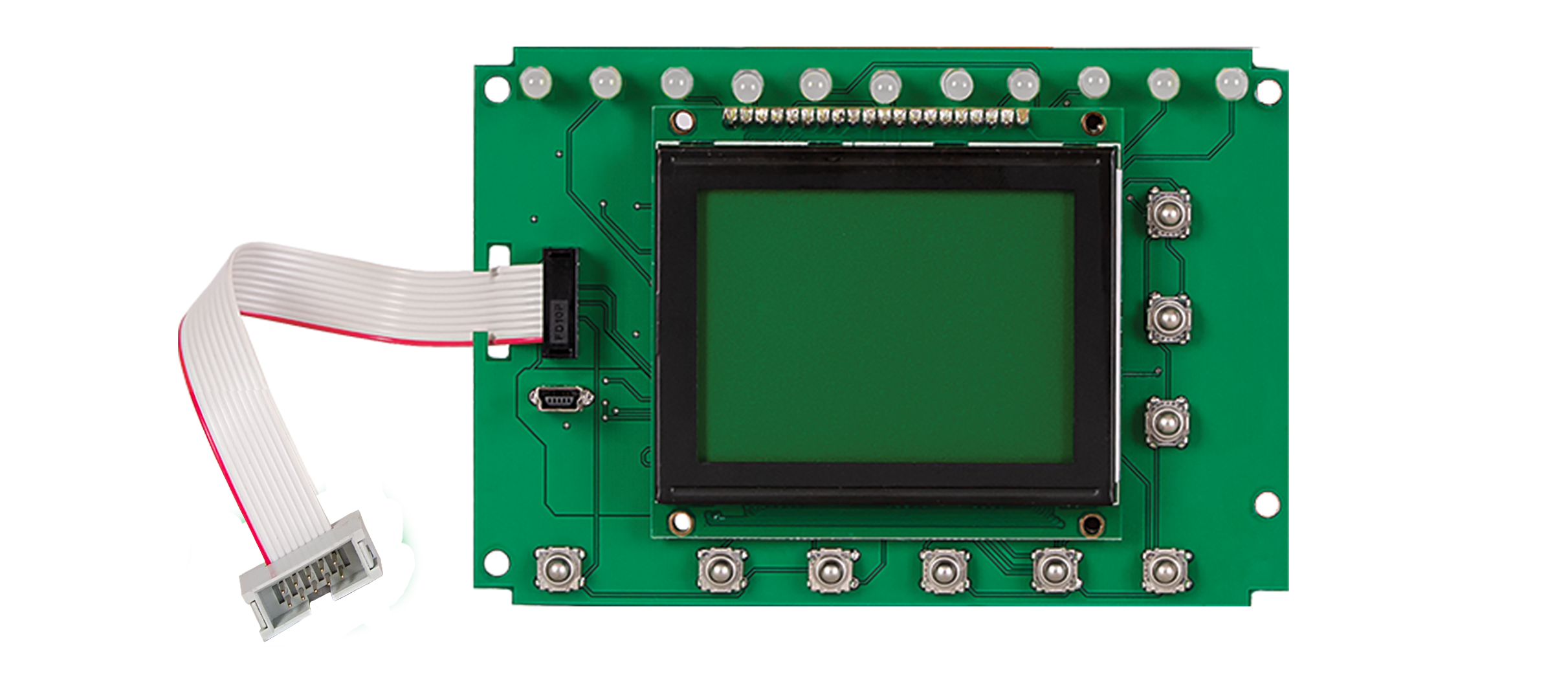

IGS313S provides all the capabilities of the SDK313 and is compatible with the following systems:
Sepam 20 / 40 series – all serial numbers: below and above 0440001
Sepam 60 series
Sepam 80 series equipped with the Advanced UMI module
IGS313S Features:
The IGS313S enables on-demand display of all operational data required for local equipment management:
Numerical and/or bar graph display of all measurement and diagnostic data, including units
Display of operational and alarm messages, with alarm acknowledgment and Sepam reset capability
Visualization of the list of activated protection functions and the key settings of major protection features
Adjustment of setpoints or time delays for active protection functions based on evolving operating conditions
Display of software versions for Sepam and any connected remote modules
Output testing and visualization of logic input statuses
Display of Logipam data, including the status of variables and timers
Two-level password protection for access to configuration and protection parameters
Sepam relay is a registered trademark of Schneider Electric
